Part #: |
NC09686 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: |
Nicor
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer Part #: |
09686 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer Description: |
DLR56-3012-120-3K-OB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
UPC Code: |
767706096866 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Case Size: |
24 ($695.76/Case) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The pricing of $28.99 is per item, not per case
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recessed Housing: |
5″-6″ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Shape: |
Round |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Output:
|
1,209 lumens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Energy Used:
|
18 watts (replaces 120 watts) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Average Lifetime:
|
53,000 hours |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Volts:
|
120 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color / Finish:
|
Oil Rubbed Bronze |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color Temperature:
|
3,000K ![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
:

Length:
7.5 inches
Height:
2.8 inches
Features

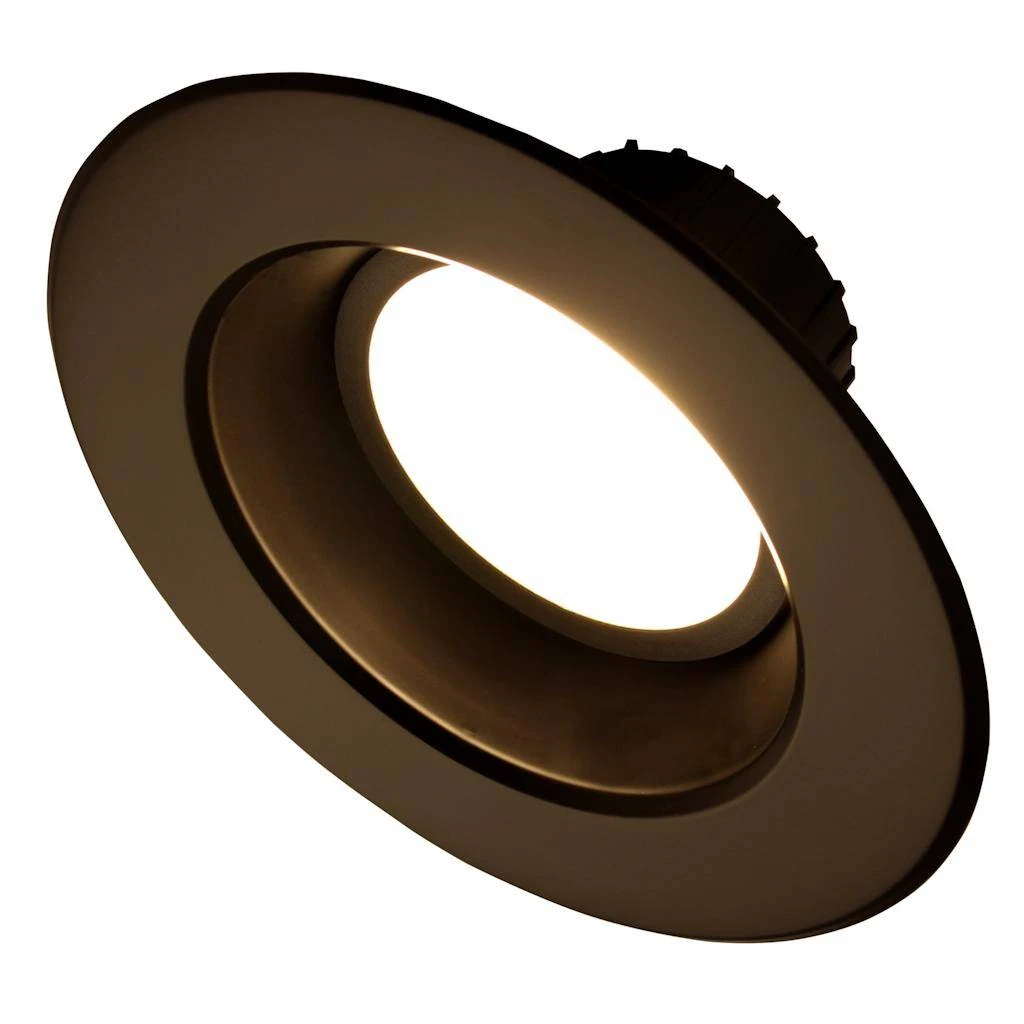

| The DLR56 from NICOR® is a 5” & 6” recessed LED downlight that is ideal for both retrofit and new construction alike | |
| Spun aluminum trim routes heat away from electrical components | |
| Low profile, integrated driver, allows for use in shallow housings | |
| Polystyrene diffuser and reflector cone create a uniform light distribution that reduces glare without sacrificing lumen output | |
| Dimmable to 10% with most standard dimmers | |
| Thermally protected, high efficiency driver standard | |
| LM-79, LM-80 testing performed in accordance with IESNA standards | |
| Quick and easy installation with a screw-in Edison base (GU24 socket string available) and torsion spring mounting system |
